icom ic 2800h

Post by 2E0ZMO on Wed Jan 23, 2008 7:00 am

i like the look of this radio,anyone used one?

DGeneral
•Frequency coverage : (Unit: MHz)
U.S.A. Transmit 144–148, 430–450*1
Receive 118–174*2, 430–450*1
S. America Transmit 144–148, 430–440
Receive 118–174*
2, 400–530*3
Europe, Tx/Rx 144–146, 430–440
Taiwan
Italy Transmit 144–148, 430–440
Receive 136–174*
2, 400–530*3
Asia Transmit 144–148, 430–440
Receive 136–174*
2, 430–440
*1 Specifications guaranteed 440–450 MHz.
*
2 Specifications guaranteed 144–148 MHz.
*
3 Specifications guaranteed 430–440 MHz.
•Mode : FM,
AM
(118–135.995; Rx only)
•No. of memory channels : 232 (incl. 12 scan edges, 10 log,
10 repeater and 2 call)
•Tuning steps : 5, 10, 12.5, 15, 20, 25, 30 and 50
kHz
•Frequency stability : ±10 ppm
(–10°C to +60°C; +14°F to +140°F)
•Power supply requirement: 13.8 V DC ±15%
(negative ground)
• Current drain (VHF/UHF; at 13.8 V DC):
Transmit max. power 12.0 A/11.0 A*
Receive standby 1.2 A
max. audio 1.8 A
*8.0 A for Taiwan version.
• Antenna connector : SO-239 (50 ½)
•Data connector :Mini DIN 6-pin
• External video input : PHONO [RCA (75
½)]
•Dimensions (projections not included):
Controller 140(W)
´70(H)´34(D) mm
5
12(W)´234(H)´11132(D) in
Main unit 140(W)
´40(H)´165.8(D) mm
5
12(W)´1916(H)´61732(D) in
•Weight (approx.) : Controller 290 g; 10.2 oz
Main unit 1.15 kg; 2 lb 9 oz
DTransmitter
•Modulation system : Variable reactance
• Output power
(VHF/UHF) : High* 50 W/35 W
Mid-H* 20 W
(approx.)
Mid-L 10 W (approx.)
Low 5 W (approx.)
* 25 W (High), 15 W (Mid-H) for both VHF and UHF for Taiwan version.
•Spurious emissions : –60 dB

•Microphone connector : 8-pin modular (600
½)
avatar
2E0ZMO
Moderator
Moderator

Call Sign : 2e0zmo
Other Call Signs : m3zmo
Locator : io83nn
DXCC Entity : england
HF Rig : icom ic706mk1
HF Antenna : g5rv
VHF / UHF Rig : icom ic2800,yaesu ft7800
VHF / UHF Antenna : tri band colinear,duel band on the van
HandHeld : puxing px777
Preferred Bands : 2m,70cm ,20m
Location : NORTHWEST ENGLAND
Registration date : 2007-10-10
Number of posts : 547
Points : 332
Reputation : 16

http://www.qrz.com/db/2E0ZMO http://www.freewebs.com/m3zmo

Back to top Go down

Re: icom ic 2800h

Post by 2W0PWR on Wed Jan 23, 2008 9:30 am

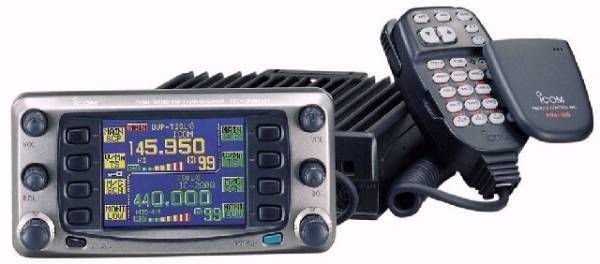

You have never seen a dual band mobile that looks like the ICOM IC-2800H! It has a stunning 3 inch (diagonal), multifunction color LCD display. You can even select from four screen formats. There is even a external video input jack (RCA phono 75 ohm). Independent tuning knobs for each band are featured. There are plenty of memories. For each band you get: 99 regular, 6 scan edge, 5 log and repeater and 1 call channel. The IC-2800H supports V/U, U/V crossband and VHF air receive. Receive coverage is 118-174 and 430-450 MHz. Other features include bandscope, 1200/9600 Packet port and full backlit hand mic. Power output is 50/20/10/5 watts on 2 meters and 35/20/10/5 watts on 440 MHz. This radio requires 13.8 VDC at 12 amps. The IC-2800H comes with the HM-98 remote control, backlit hand mic, MB-73 controller bracket kit, mobile mounting bracket, DC power cable, spare fuses and 11.5 foot (3.5 m) separation cable.
Main unit size: 5.5 x 1.6 x 6.6 inches (140x40x167 mm). Controller size: 5.5 x 2.75 x 1.4 inches (140x70x35 mm).
Click here for specifications.


<TR>Features


  • Encode/Decode
  • Packet 1200/9600 Ready
  • 99 Memories Per Band
  • 6 Scan Edge Memories
  • Time-Out Timer
  • Independent Controls
  • Built-in Duplexer


  • Color TFT
  • Four Output Levels
  • Remote Head
  • Tone Scan
  • DTMF Hand Mic
  • Air band receive
  • Controller Bracket Supplied

Some more info for you to look at Andy, take a look at the link four screen formats... Nice stuff
